1. What Is TPU?
Thermoplastic Polyurethane (TPU) is a high-performance polymer that bridges the gap between rubber and plastic. At room temperature, it behaves like rubber — elastic, flexible, and resilient. When heated, it melts and flows like plastic, allowing it to be injection-molded, extruded, or blow-molded into complex shapes.
Think of it as: the elasticity of rubber + the processability of plastic + the abrasion resistance of polyurethane. This unique "three-in-one" property profile makes TPU the material of choice for footwear, automotive, medical, electronics, cable, and film applications — anywhere that demands toughness without sacrificing flexibility.
2. Chemical Structure
TPU is a block copolymer consisting of alternating hard and soft segments:
| Segment | Source | Function |
|---|---|---|
| Hard Segment | Diisocyanate + chain extender (e.g. MDI + 1,4-butanediol) | Provides strength, rigidity, heat resistance, and dimensional stability |
| Soft Segment | Polyol (polyester, polyether, polycaprolactone, or polycarbonate) | Provides elasticity, flexibility, and low-temperature performance |
Microphase separation: At room temperature, hard segments aggregate into crystalline domains that act as physical crosslinks, while soft segments form a continuous elastic matrix. Upon heating, the hard segment crystals melt and the material flows. Upon cooling, the crystals reform — restoring elasticity. This reversible physical crosslinking is why TPU can be repeatedly processed like a thermoplastic while retaining rubber-like properties — something traditional vulcanized rubber cannot do.
3. Key Properties
3.1 Physical Properties
| Property | TPU Typical Range | Benchmark |
|---|---|---|
| Hardness | Shore 60A – 80D | Covers from soft rubber to rigid plastic in a single chemistry |
| Tensile Strength | 25–70 MPa | Far exceeds rubber (10–25 MPa); comparable to nylon |
| Elongation at Break | 300%–800% | Superior to most engineering plastics |
| Tear Strength | 50–150 kN/m | 2–3× natural rubber |
| Taber Abrasion (H18/1000g) | ≤ 50 mg loss | Far superior to PVC (~200 mg); near UHMWPE levels |
| Resilience (Rebound) | 35%–65% | Better than PVC and EVA |
| Density | 1.10–1.25 g/cm³ | Lighter than PVC (1.35); comparable to rubber |
3.2 Chemical & Environmental Properties
| Property | Performance |
|---|---|
| Oil & Solvent Resistance | Excellent resistance to mineral oils, lubricants, and gasoline. Sensitive to ketones, esters, and chlorinated solvents |
| Hydrolysis Resistance | Polyether TPU: excellent (passes 80°C/95%RH long-term test). Polyester TPU: moderate to poor |
| UV / Yellowing Resistance | Aliphatic TPU: Grade 4–5 (outdoor-stable). Aromatic TPU: prone to yellowing (requires UV stabilizer) |
| Temperature Range | Continuous service: -40°C to 100°C. Short-term peak: 120°C (grade-dependent) |
| Biocompatibility | Medical-grade TPU meets ISO 10993 and USP Class VI |
| Recyclability | 100% thermoplastic recyclable: can be reground and reprocessed into new parts |
4. TPU Classifications
4.1 By Soft Segment Chemistry
| Type | Key Characteristics | Typical Applications |
|---|---|---|
| Polyester TPU | Highest mechanical strength, best abrasion and oil resistance. Weaker hydrolysis resistance | Shoe soles, industrial rollers, seals, conveyor belts |
| Polyether TPU | Excellent hydrolysis resistance, superior low-temperature flexibility, microbe-resistant. Slightly lower mechanical strength | Cable jackets, medical tubing, outdoor films, water sports equipment |
| Polycaprolactone TPU | Balanced strength and hydrolysis resistance. Highest cost among standard types | Premium seals, implant-grade medical devices |
| Polycarbonate TPU | Outstanding heat and oxidation resistance. Highest cost | Automotive engine bay components, high-temperature cables |
4.2 By Hardness
| Hardness Range | Tactile Feel | Typical Applications |
|---|---|---|
| 60A–80A | Soft, highly elastic | Phone cases, gaskets, insoles |
| 85A–95A | Medium-firm, tough | Shoe soles, watch bands, industrial tubing |
| 55D–65D | Firm, rigidifying | Ski boot buckles, gears, structural parts |
| 70D–80D | High rigidity, engineering plastic-like | Automotive structural components, high-strength brackets |
4.3 By Processing Form
| Form | Processing Method | Extended Applications |
|---|---|---|
| TPU Pellets / Granules | Injection molding, extrusion, blow molding | Shoe soles, phone cases, automotive parts, tubing |

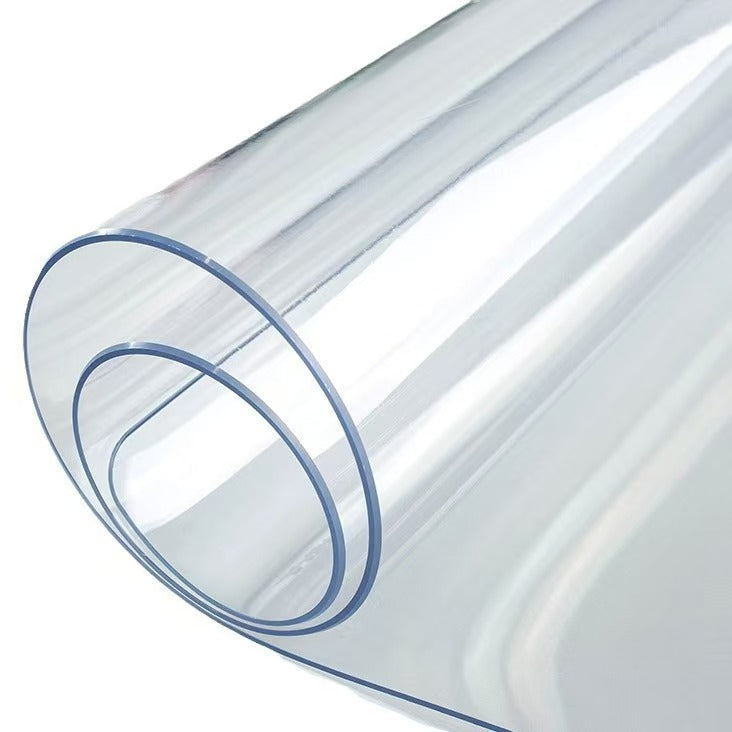

| TPU Film / Sheet | Cast film, blown film, calendering | Shoe upper lamination, waterproof-breathable membranes, automotive PPF |
| TPU Hot Melt Adhesive Film | Melt coating | Seamless garments, no-sew shoe uppers, fabric lamination |
| TPU Filament | Extrusion & drawing | 3D printing filament, headphone cable jackets |
4.4 By Functional Property
| Functional Type | Additional Properties | Applications |
|---|---|---|
| Flame-Retardant TPU | V-0 rating, low-smoke, halogen-free | EV cables, electronics |
| Aliphatic TPU (Non-Yellowing) | UV exposure 1000h ΔE ≤ 3 | Paint protection film, outdoor gear, transparent parts |
| Anti-Static / Conductive TPU | Surface resistivity 10⁶–10⁹ Ω | Cleanroom equipment, ESD rollers |
| Medical-Grade TPU | ISO 10993 biocompatibility | Catheters, IV sets, wound dressings |
| Bio-Based TPU | Partially derived from corn, castor oil, etc. | ESG brands, sustainable consumer goods |
5. TPU vs. Other Materials
| Comparison | TPU | PVC | TPE (TPE-S) | Natural Rubber |
|---|---|---|---|---|
| Abrasion Resistance | ★★★★★ | ★★ | ★★ | ★★★★ |
| Elasticity | ★★★★ | ★★ | ★★★★ | ★★★★★ |
| Processability | ★★★★★ Thermoplastic, recyclable | ★★★ Contains plasticizers | ★★★★ Thermoplastic | ★ Irreversible cure, not recyclable |
| Environmental | ★★★★ Halogen-free, recyclable | ★ Contains chlorine + phthalates | ★★★ | ★★★ |
| Temperature Range | ★★★★ -40°C to 100°C | ★★ Brittle at low temp | ★★★ | ★★★ |
| Cost | Medium-High | Low | Medium | Medium |
6. Major Application Areas
Footwear — The Largest Market
- Sports shoe midsole & outsole
- TPU film hot-cut upper overlays
- Insoles & arch support components
- Air cushion membranes (replacing traditional rubber)
Automotive
- Paint Protection Film (PPF) — highest value-added TPU application
- Instrument panel skins & door panel wrapping
- Cable sheathing (flame-retardant TPU)
- Seat ventilation system components
Medical & Healthcare
- IV catheters & hemodialysis tubing
- Surgical gown breathable membranes
- Medical mattresses & protective covers
- Orthopedic devices & prosthetic liners
Electronics & Consumer Goods
- Phone protective cases
- Smartwatch bands
- Charging cable jackets
- Headphone cables
Industrial & Cable
- Robotic cable jackets (high flex-cycle life)
- Conveyor belts & timing belts
- Hydraulic seals
- Pneumatic tubing
7. How to Choose TPU: A 5-Step Buyer's Guide
- Define hardness — touch and stiffness dictate Shore A or D range.
- Define hydrolysis needs — wet/humid environments → choose polyether TPU; dry + high strength → polyester TPU.
- Define UV stability — outdoor/transparent applications → aliphatic TPU is mandatory.
- Define processing method — injection molding → pellets; lamination → film/hot melt; extrusion → specific melt-flow grades.
- Define certifications — medical → USP Class VI / ISO 10993; automotive → V-0 flame retardant; food contact → FDA.
